MSI PRO B760M-P DDR4, Intel B760, 1700, Micro ATX, 4 DDR4, VGA, HDMI, DP, GB LAN, 2x M.2
$296.35
Sale price
$296.35
Regular price
$0.00
Skip to product information
Specifications:
- CPU Support : Click here for CPU support
- Wireless : -
- Chipset : Intel B760
- RAM Technology : DDR4 (Dual Channel) Supports non-ECC, un-buffered memory Supports Intel XMP
- USB Ports Supported : Rear: 1 x USB 10Gbps Type-C 1 x USB 5Gbps Type-A 4 x USB 2.0 Front: 2 x USB 5Gbps Type-A 4 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 128GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : Micro ATX
- Accessories : EU Regulatory Notice Quick Installation Guide 2 x M.2 Screw / Standoff Sets SATA Cable I/O Shield
- #Hide#Max LAN Speed : GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR4
- Graphics Ports : 1 x VGA 1 x HDMI 1 x DisplayPort
- PCI/PCI Express : 1 x PCIe 4.0 x16 2 x PCIe 4.0 x1
- RAM Speeds : Up to 4800+(OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0, 1, 5 and 10 for SATA storage devices
- . : 2 x USB 5Gbps Type-A
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x Power (ATX_PWR) 1 x Power (CPU_PWR) 1 x CPU Fan 2 x System Fan 2 x Front Panel 1 x Chassis Intrusion 1 x Front Audio 1 x Printer Port 1 x Com Port 1 x RGB LED 1 x TPM pin TPM 2.0 4 x USB 2.0
- Storage : 4 x SATA III 2 x M.2 M.2_1 (2280/2260/2242) - PCIe 4.0 x4 M.2_2 (2280/2260/2242) - SATA & PCIe 4.0 x4

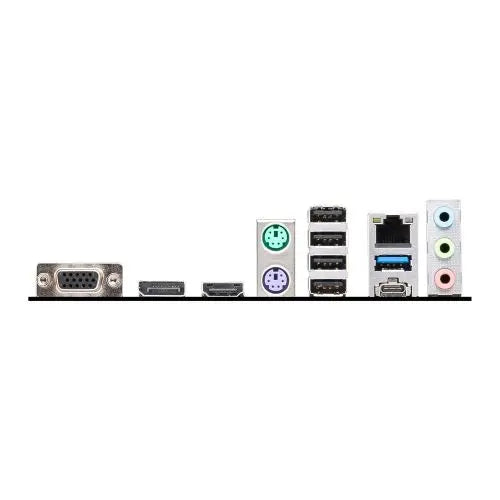

- Back Panel I/O Ports : 1 x USB 10Gbps Type-C 1 x USB 5Gbps Type-A 4 x USB 2.0 1 x DisplayPort 1.4 1 x HDMI 1.4 1 x VGA 1 x RJ-45 1 x Audio Line In 1 x Audio Line Out 1 x Microphone In
- LAN : GB LAN
- Additional Features : See Overview
- Audio : Realtek ALC897 Codec 7.1-Channel High Definition Audio
- Package Weight : To be confirmed
- Socket : Intel 1700
MSI PRO B760M-P DDR4, Intel B760, 1700, Micro ATX, 4 DDR4, VGA, HDMI, DP, GB LAN, 2x M.2
$296.35
Sale price
$296.35
Regular price
$0.00
MSI PRO B760M-P DDR4, Intel B760, 1700, Micro ATX, 4 DDR4, VGA, HDMI, DP, GB LAN, 2x M.2
PRO B760M-P DDR4 is designed with tons of flexible tools with DDR4 memory version.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Business Elegance Redefined
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
USB 3.2 Gen 2 Type-C
Synergize with a MSI motherboard through bridging with a USB 3.2 Gen 2 Type-C port for convenient access.
PCI-E Steel Armor
Protecting VGA cards against bending and EMI.
EZ Debug LED
Easiest way to troubleshoot.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
Memory Boost
Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience.
Specifications:
- CPU Support : Click here for CPU support
- Wireless : -
- Chipset : Intel B760
- RAM Technology : DDR4 (Dual Channel) Supports non-ECC, un-buffered memory Supports Intel XMP
- USB Ports Supported : Rear: 1 x USB 10Gbps Type-C 1 x USB 5Gbps Type-A 4 x USB 2.0 Front: 2 x USB 5Gbps Type-A 4 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 128GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : Micro ATX
- Accessories : EU Regulatory Notice Quick Installation Guide 2 x M.2 Screw / Standoff Sets SATA Cable I/O Shield
- #Hide#Max LAN Speed : GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR4
- Graphics Ports : 1 x VGA 1 x HDMI 1 x DisplayPort
- PCI/PCI Express : 1 x PCIe 4.0 x16 2 x PCIe 4.0 x1
- RAM Speeds : Up to 4800+(OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0, 1, 5 and 10 for SATA storage devices
- . : 2 x USB 5Gbps Type-A
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x Power (ATX_PWR) 1 x Power (CPU_PWR) 1 x CPU Fan 2 x System Fan 2 x Front Panel 1 x Chassis Intrusion 1 x Front Audio 1 x Printer Port 1 x Com Port 1 x RGB LED 1 x TPM pin TPM 2.0 4 x USB 2.0
- Storage : 4 x SATA III 2 x M.2 M.2_1 (2280/2260/2242) - PCIe 4.0 x4 M.2_2 (2280/2260/2242) - SATA & PCIe 4.0 x4
- Back Panel I/O Ports : 1 x USB 10Gbps Type-C 1 x USB 5Gbps Type-A 4 x USB 2.0 1 x DisplayPort 1.4 1 x HDMI 1.4 1 x VGA 1 x RJ-45 1 x Audio Line In 1 x Audio Line Out 1 x Microphone In
- LAN : GB LAN
- Additional Features : See Overview
- Audio : Realtek ALC897 Codec 7.1-Channel High Definition Audio
- Package Weight : To be confirmed
- Socket : Intel 1700
