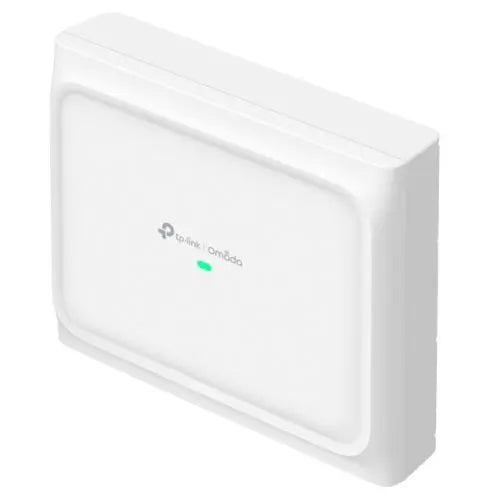

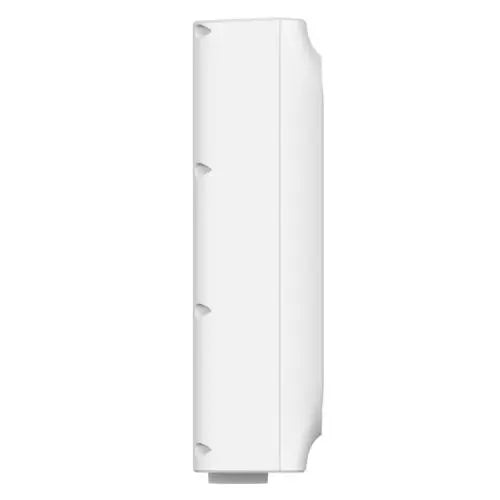

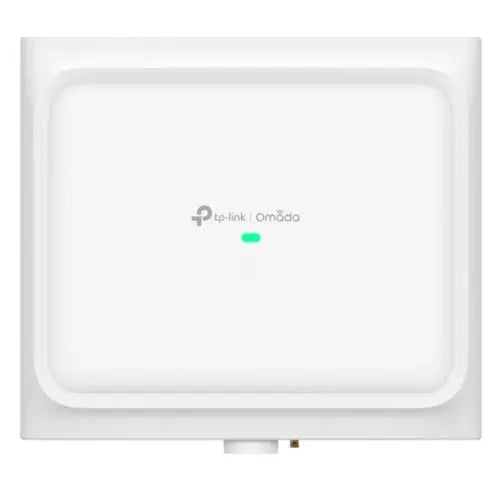

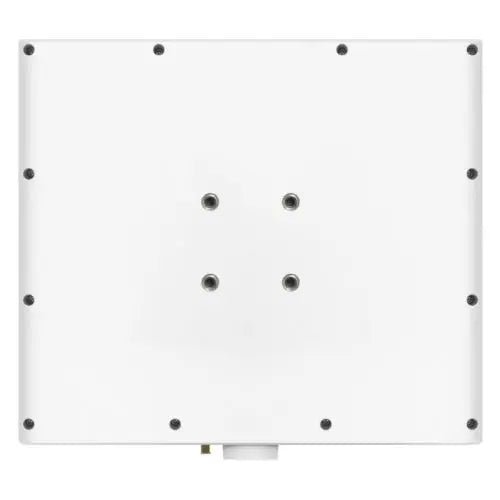

TP-LINK (EAP650 D30-OUTDOOR) Omada AX3000 Indoor/Outdoor Wi-Fi 6 Access Point, Directional Ultra-Range Coverage, PoE, Mesh Technology
$744.50
Sale price
$744.50
Regular price
$0.00
Skip to product information
Specifications:
- EIRP : < 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP)
- #Hide#Wireless Standard : 802.11ax (Wi-Fi 6/6E)
- Wireless Functions : 1024-QAM DL/UL OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 on each band) Enable/Disable Wireless Radio Enable/Disable SSID Broadcast Guest Network Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS (WMM) 2 x 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO Omada Mesh§ Seamless Roaming(802.11k/v/r) Band Steering Load Balance Airtime Fairness Beamforming RADIUS Accounting MAC Authentication Reboot Schedule
- Max Single Band Wi-Fi Rate : 2402 Mbps
- Wireless Standards : IEEE 802.11 a/b/g/n/ac/ax
- Security : Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Button(s) : Reset
- Power Supply : 802.3at PoE 48V Passive PoE
- Package Contents : Access Point EAP650 D30-Outdoor Mounting Kits Installation Guide
- Wi-Fi Rating : AX3000
- Primary Function : Access Point
- Suitable for Outdoor : Yes (Outdoor)

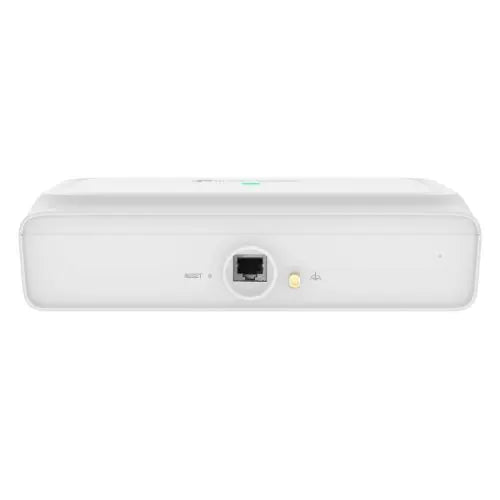

- Interface(s) : 1 x Gigabit Ethernet (RJ-45) supports 802.3at PoE or 48V Passive PoE
- Antenna(s) : Built-in Directional Antennas: 2.4 GHz: 2x 12 dBi 5 GHz: 2x 15 dBi Beamwidth: 30° Horizontal; 30° Vertical
- Warranty : 2 Years
- Dimensions : (WxDxH) 207.5 x 58 x 230 mm
- Management : Omada App Restore & Backup NTP Centralized Management - Omada controller Cloud Access - requires Omada controller Email Alerts LED ON/OFF Control Management MAC Access Control SNMP: v1, v2c, v3 System Logging Local/Remote Syslog SSH Web-based Management Multi-site Management Zero-Touch Provisioning - requires Omada Cloud-Based controller
- . : Wireless Schedule Wireless Statistics Static IP/Dynamic IP
- Quality of Service : QoS (WMM)
- Package Type : Retail
- Bands : Dual Band
- Wireless Range : Directional Ultra-Range Coverage 2.4 GHz up to 1181 ft / 360 m 5 GHz up to 2953 ft / 900 m
- Max Wired Transfer Rate : 10/100/1000 Mbps
- #Hide#Access Point Mode : Yes (Access Point Mode)
- Frequency : 2.4GHz: Up to 574Mbps 5GHz: Up to 2402Mbps
- Additional Features : See Overview
- Environment : Operating Temperature: -30–70°C (-22–158°F) Storage Temperature: -40–70°C (-40–158°F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Power Consumption : 12.5W (802.3at PoE or Passive PoE)
- Package Weight : 2.1300 kg
TP-LINK (EAP650 D30-OUTDOOR) Omada AX3000 Indoor/Outdoor Wi-Fi 6 Access Point, Directional Ultra-Range Coverage, PoE, Mesh Technology
$744.50
Sale price
$744.50
Regular price
$0.00
TP-LINK (EAP650 D30-OUTDOOR) Omada AX3000 Indoor/Outdoor Wi-Fi 6 Access Point, Directional Ultra-Range Coverage, PoE, Mesh Technology
AX3000 Indoor/Outdoor WiFi 6 Access Point
- Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
- Directional Ultra-Range Coverage: Equipped with built-in high-gain directional antennas to deliver precise and extended coverage.
- Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70°C operating range.
- 802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners.
- Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology.
- Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI.
Designed for Warehouses
The EAP650 D30-Outdoor features a durable, fully sealed IP68 weatherproof enclosure, making it dustproof and capable of withstanding submersion in water. It is ideal for warehouse environments.
Elevate WiFi Experience for Shelf Areas with Directional Antennas
Equipped with 4x built-in dual-band directional antennas with high gain to ensure the optimal WiFi experience ideal for precise and extended coverage.*
Recommended Installation Height: 13 ft / 4 m
Recommended Coverage Length: 262 ft / 80 m
Directional Antennas for Ultra-Range Coverage in Outdoor Scenarios
2.4 GHz up to 1181 ft /360 m*
5 GHz up to 2953 ft /900 m*
*Based on field tests in an open, outdoor, and unobstructed environment. The number listed here is the maximum distance of one EAP650 D30-Outdoor which the client's signal strength is ≥ -75 dBm. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc.
Stay Smooth with Seamless Roaming
Ensure users enjoy uninterrupted steaming when moving around by switching clients automatically to the access points with the optimal signals.
