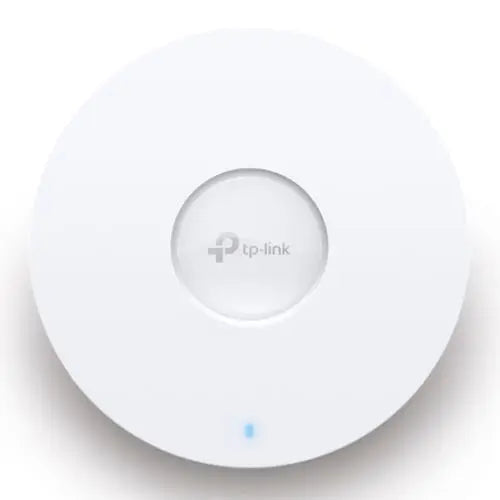

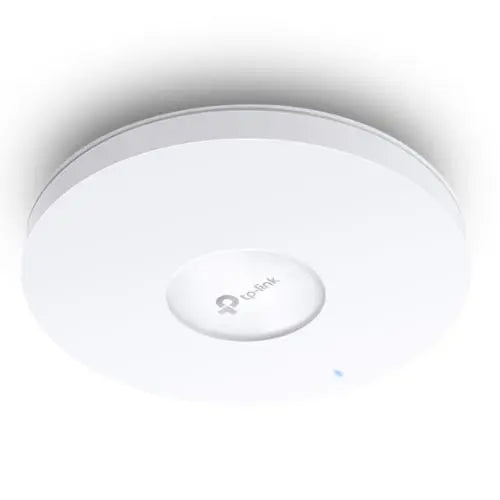

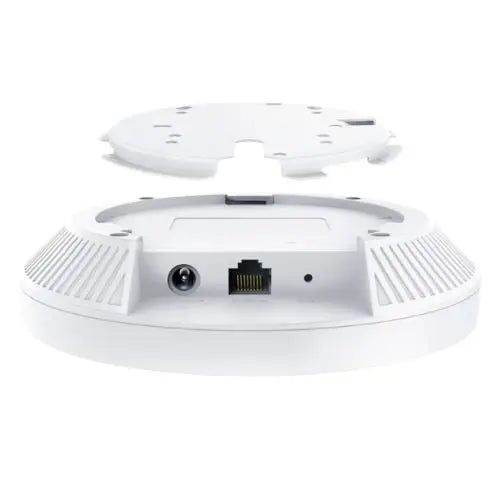

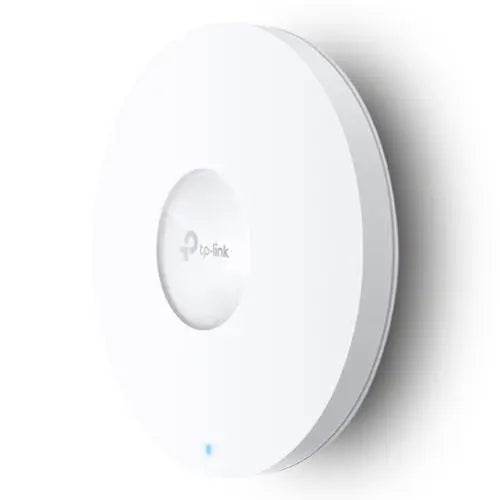

TP-LINK (EAP653 UR) AX3000 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE+, Omada Mesh, Ultra Slim Design
$297.78
Sale price
$297.78
Regular price
$0.00
Skip to product information
Specifications:
- Wi-Fi Rating : AX3000
- Primary Function : Access Point
- Suitable for Outdoor : No
- Interface(s) : 1 x Gigabit PoE+ Port
- Antenna(s) : Internal Omni: 2.4 GHz: 2x 5 dBi 5 GHz: 3x 5 dBi
- Warranty : Limited Lifetime
- Dimensions : 160 x 160 x 33.6 mm
- Button(s) : Reset
- Power Supply : 802.3at PoE 12V DC / 1.5 A (Power Adapter IS NOT included) 48V Passive PoE
- Package Contents : EAP653 UR Ceiling/Wall Mounting Kit Installation Guide Note: DC adapter is not included in the package, and is sold separately.
- EIRP : <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <29 dBm(5 GHz, Band3, EIRP)
- #Hide#Wireless Standard : 802.11ax (Wi-Fi 6/6E)
- Wireless Functions : 1024-QAM 4x Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL) HE160 (160 MHz Bandwidth)
- Max Single Band Wi-Fi Rate : 2402 Mbps
- Wireless Standards : IEEE 802.11ax/ac/n/g/b/a
- Security : Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Management : Omada App Centralized Management Cloud Access Email Alerts LED ON/OFF Control Management MAC Access Control SNMP v1, v2c, v3 Local/Remote Syslog SSH HTTP/HTTPS L3 Management Multi-site Management Management VLAN Zero-Touch Provisioning
- . : Seamless Roaming(802.11k/v/r) Omada Mesh Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
- Package Type : Retail
- Bands : Dual Band
- Wireless Range : Ultra-range wireless coverage
- Max Wired Transfer Rate : 10/100/1000 Mbps
- #Hide#Access Point Mode : Yes (Access Point Mode)
- Frequency : 5 GHz: Up to 2402 Mbps 2.4 GHz: Up to 574 Mbps
- Additional Features : See Overview
- Environment : Operating Temperature: 0–40 °C (32–104 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Power Consumption : 14.2 W
- Package Weight : 1.7400 kg
TP-LINK (EAP653 UR) AX3000 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE+, Omada Mesh, Ultra Slim Design
$297.78
Sale price
$297.78
Regular price
$0.00
TP-LINK (EAP653 UR) AX3000 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE+, Omada Mesh, Ultra Slim Design
AX3000 Ceiling Mount WiFi 6 Access Point
- Ultra-fast WiFi 6 speeds: 2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz†
- Ultra-range wireless coverage by more antennas with higher transmit power
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc‡
- Advanced Features: Omada Mesh, Seamless Roaming, etc§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
- Ultra-Slim Design: Φ6.3 in x 1.3 in elegant design brings more agility
- Integrates with the Omada SDN platform for centralized management
Specifications:
- Wi-Fi Rating : AX3000
- Primary Function : Access Point
- Suitable for Outdoor : No
- Interface(s) : 1 x Gigabit PoE+ Port
- Antenna(s) : Internal Omni: 2.4 GHz: 2x 5 dBi 5 GHz: 3x 5 dBi
- Warranty : Limited Lifetime
- Dimensions : 160 x 160 x 33.6 mm
- Button(s) : Reset
- Power Supply : 802.3at PoE 12V DC / 1.5 A (Power Adapter IS NOT included) 48V Passive PoE
- Package Contents : EAP653 UR Ceiling/Wall Mounting Kit Installation Guide Note: DC adapter is not included in the package, and is sold separately.
- EIRP : <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <29 dBm(5 GHz, Band3, EIRP)
- #Hide#Wireless Standard : 802.11ax (Wi-Fi 6/6E)
- Wireless Functions : 1024-QAM 4x Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL) HE160 (160 MHz Bandwidth)
- Max Single Band Wi-Fi Rate : 2402 Mbps
- Wireless Standards : IEEE 802.11ax/ac/n/g/b/a
- Security : Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Management : Omada App Centralized Management Cloud Access Email Alerts LED ON/OFF Control Management MAC Access Control SNMP v1, v2c, v3 Local/Remote Syslog SSH HTTP/HTTPS L3 Management Multi-site Management Management VLAN Zero-Touch Provisioning
- . : Seamless Roaming(802.11k/v/r) Omada Mesh Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
- Package Type : Retail
- Bands : Dual Band
- Wireless Range : Ultra-range wireless coverage
- Max Wired Transfer Rate : 10/100/1000 Mbps
- #Hide#Access Point Mode : Yes (Access Point Mode)
- Frequency : 5 GHz: Up to 2402 Mbps 2.4 GHz: Up to 574 Mbps
- Additional Features : See Overview
- Environment : Operating Temperature: 0–40 °C (32–104 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Power Consumption : 14.2 W
- Package Weight : 1.7400 kg
