TP-LINK (EAP655-WALL) AX3000 Wall Plate Wi-Fi 6 Access Point, Dual Band, PoE, 3x GB LAN, OFDMA, Free Software
$347.39
Sale price
$347.39
Regular price
$0.00
Skip to product information
Specifications:
- EIRP : <20 dBm (2.4GHz, EIRP) <23 dBm (5GHz band1 & 2, EIRP) <26 dBm (5GHz band3, EIRP)
- #Hide#Wireless Standard : 802.11ax (Wi-Fi 6/6E)
- Wireless Functions : 16 SSIDs (Up to 8 SSIDs on each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Seamless Roaming§ Beamforming Rate Limit Load Balance Airtime Fairness
- Max Single Band Wi-Fi Rate : 2402 Mbps
- Wireless Standards : IEEE 802.11ax/ac/n/g/b/a
- Security : Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients VLAN Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Power Supply : 802.3af/at PoE
- Package Contents : AX3000 Wall Plate WiFi 6 Access Point Installation Guide Mounting Kits
- Wi-Fi Rating : AX3000
- Primary Function : Access Point
- Suitable for Outdoor : No
- Interface(s) : Uplink: 1 x 10/100/1000 Mbps Ethernet Port Downlink: 3 x 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out
- Protection : Reset, LED
- Antenna(s) : 2 Dual-Band Antennas 2.4 GHz: 2x 3 dBi 5 GHz: 2x 5 dBi
- Warranty : Limited Lifetime
- Dimensions : 143 x 86 x 42.6 mm
- Management : Omada App Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller Omada Cloud-Based Controller Cloud Access - Requires Controller Email Alerts LED ON/OFF Control Management MAC Access Control SNMP v1, v2c, v3 System Logging Local/Remote Syslog SSH Web-based Management: HTTP/HTTPS L3 Management Multi-site Management Management VLAN Zero-Touch Provisioning - Requires Cloud-Based Controller
- . : Band Steering Reboot Schedule Wireless Schedule RADIUS Accounting MAC Authentication Wireless Statistics Static IP/Dynamic IP
- Quality of Service : QoS(WMM)
- Package Type : Retail
- Bands : Dual Band
- Max Wired Transfer Rate : 10/100/1000 Mbps
- #Hide#Access Point Mode : Yes (Access Point Mode)
- Frequency : 2.4 GHz and 5 GHz
- Additional Features : See Overview
- Environment : Operating Temperature: 0–40 °C (32–104 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Power Consumption : 12W (802.3at PoE, PoE Out off)
- Package Weight : 0.4500 kg
TP-LINK (EAP655-WALL) AX3000 Wall Plate Wi-Fi 6 Access Point, Dual Band, PoE, 3x GB LAN, OFDMA, Free Software
$347.39
Sale price
$347.39
Regular price
$0.00
TP-LINK (EAP655-WALL) AX3000 Wall Plate Wi-Fi 6 Access Point, Dual Band, PoE, 3x GB LAN, OFDMA, Free Software
AX3000 Wall Plate WiFi 6 Access Point
- Blazing-Fast AX3000 WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
- Higher Network Efficiency: Deliver data to more devices at the same time with less lag.
- Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.
- Multiple Gigabit Ports: Connect multiple devices with three downlink gigabit ports, one with PoE pass-through.
- Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
- Secure Guest Network: Implement multiple authentication options (SMS/Facebook Wi-Fi/ Voucher) packed with high-quality wireless security technologies.
- Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
Lightning-Fast AX3000 WiFi 6 Speeds
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity. Enjoy more than twice the speed of WiFi 5 with new-era business WiFi 6 with speeds up to 2976 Mbps
Better User Experience with High-Performance WiFi 6 Connectivity
The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency.
More than Speed, Security Matters
Safeguard your network against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.
Full Gigabit Ports to Bridge Network

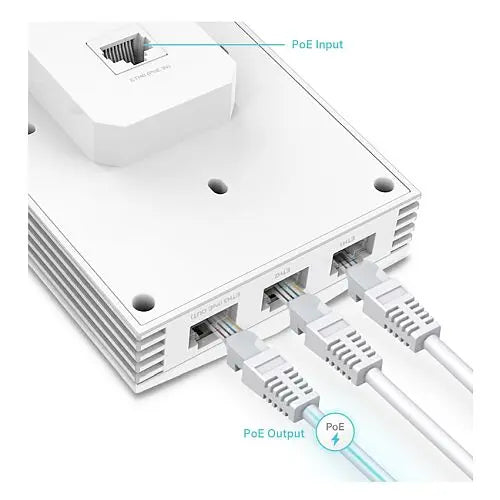

Wired devices like VoIP phones can be powered with no need for extra electrical cables. The four data ports (1 uplink + 3 downlinks) transfer data at multiple gigabits, allowing you to connect several devices to your gigabits network. One of the downlink ports offers PoE pass-through to eliminate the need for that extra power port.
Effortless Deployment with PoE Powered
With 802.3af/802.3at PoE support, there’s no need for more wiring. Plug it into the existing Ethernet cables, and you’re ready.
Quick, Simplified Installation
With an easy-to-install design, there is no need to bring someone in to install our EAP.
Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network - all controlled from a single interface.
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of your mobile device.
Specifications:
- EIRP : <20 dBm (2.4GHz, EIRP) <23 dBm (5GHz band1 & 2, EIRP) <26 dBm (5GHz band3, EIRP)
- #Hide#Wireless Standard : 802.11ax (Wi-Fi 6/6E)
- Wireless Functions : 16 SSIDs (Up to 8 SSIDs on each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Seamless Roaming§ Beamforming Rate Limit Load Balance Airtime Fairness
- Max Single Band Wi-Fi Rate : 2402 Mbps
- Wireless Standards : IEEE 802.11ax/ac/n/g/b/a
- Security : Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients VLAN Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Power Supply : 802.3af/at PoE
- Package Contents : AX3000 Wall Plate WiFi 6 Access Point Installation Guide Mounting Kits
- Wi-Fi Rating : AX3000
- Primary Function : Access Point
- Suitable for Outdoor : No
- Interface(s) : Uplink: 1 x 10/100/1000 Mbps Ethernet Port Downlink: 3 x 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out
- Protection : Reset, LED
- Antenna(s) : 2 Dual-Band Antennas 2.4 GHz: 2x 3 dBi 5 GHz: 2x 5 dBi
- Warranty : Limited Lifetime
- Dimensions : 143 x 86 x 42.6 mm
- Management : Omada App Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller Omada Cloud-Based Controller Cloud Access - Requires Controller Email Alerts LED ON/OFF Control Management MAC Access Control SNMP v1, v2c, v3 System Logging Local/Remote Syslog SSH Web-based Management: HTTP/HTTPS L3 Management Multi-site Management Management VLAN Zero-Touch Provisioning - Requires Cloud-Based Controller
- . : Band Steering Reboot Schedule Wireless Schedule RADIUS Accounting MAC Authentication Wireless Statistics Static IP/Dynamic IP
- Quality of Service : QoS(WMM)
- Package Type : Retail
- Bands : Dual Band
- Max Wired Transfer Rate : 10/100/1000 Mbps
- #Hide#Access Point Mode : Yes (Access Point Mode)
- Frequency : 2.4 GHz and 5 GHz
- Additional Features : See Overview
- Environment : Operating Temperature: 0–40 °C (32–104 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Power Consumption : 12W (802.3at PoE, PoE Out off)
- Package Weight : 0.4500 kg
