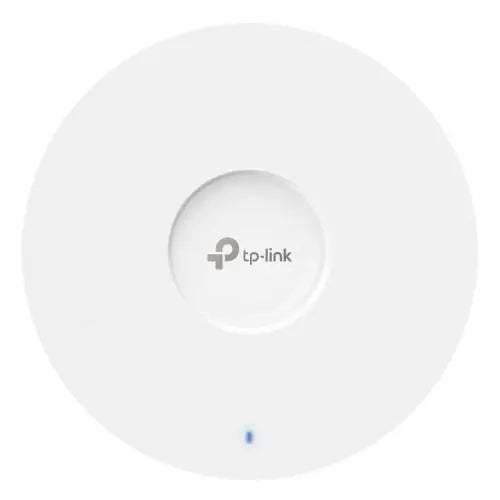

TP-LINK (EAP683 UR) AX6000 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE+, 2.5G Port, Omada Mesh
$526.09
Sale price
$526.09
Regular price
$0.00
Skip to product information
Specifications:
- EIRP : <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <28 dBm(5 GHz, band3, EIRP)
- #Hide#Wireless Standard : 802.11ax (Wi-Fi 6/6E)
- Wireless Functions : 1024-QAM 4x Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO (4*4 MU-MIMO DL&UL) MIMO [4*4 (2.4G and 5G) MU-MIMO; 4*4 (2.4G and 5G) SU-MIMO]
- Max Single Band Wi-Fi Rate : 4804 Mbps
- Wireless Standards : IEEE 802.11ax/ac/n/g/b/a
- Security : Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Button(s) : Reset
- Power Supply : 802.3at PoE 12V / 2A DC (Power Adapter IS NOT included)
- Package Contents : EAP683 UR Ceiling/Wall Mounting Kits Installation Guide
- Wi-Fi Rating : AX6000
- Primary Function : Access Point
- Suitable for Outdoor : No
- Interface(s) : 1 x 2.5 Gigabit PoE+ Port
- Antenna(s) : Internal Omni: 2.4 GHz: 4x 4 dBi 5 GHz: 4x 5 dBi
- Warranty : Limited Lifetime
- Dimensions : 220 x 220 x 32.5 mm
- Management : Omada App Centralized Management Cloud Access Email Alerts LED ON/OFF Control Management MAC Access Control SNMP v1, v2c, v3 Local/Remote Syslog SSH HTTP/HTTPS L3 Management Multi-site Management Management VLAN Zero-Touch Provisioning
- . : HE160 (160 MHz Bandwidth) Seamless Roaming(802.11k/v/r) Omada Mesh Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
- Package Type : Retail
- Bands : Dual Band
- Wireless Range : Ultra-range wireless coverage
- Max Wired Transfer Rate : 2.5 Gbps
- #Hide#Access Point Mode : Yes (Access Point Mode)
- Frequency : 5 GHz: Up to 4804 Mbps 2.4 GHz: Up to 1148 Mbps
- Additional Features : See Overview
- Environment : Operating Temperature: 0–40 °C (32–104 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Power Consumption : 20.43W
- Package Weight : 1.3000 kg
TP-LINK (EAP683 UR) AX6000 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE+, 2.5G Port, Omada Mesh
TP-LINK (EAP683 UR) AX6000 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE+, 2.5G Port, Omada Mesh
$526.09
Sale price
$526.09
Regular price
$0.00
TP-LINK (EAP683 UR) AX6000 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE+, 2.5G Port, Omada Mesh
AX6000 Ceiling Mount WiFi 6 Access Point
- Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz
- Ultra-range wireless coverage by 4x4 MIMO dual-band internal antennas with high transmission power.
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.
- Integrates with the Omada SDN platform for centralized management.
- Advanced Features: Omada Mesh, Seamless Roaming, and more.
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).
Specifications:
- EIRP : <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <28 dBm(5 GHz, band3, EIRP)
- #Hide#Wireless Standard : 802.11ax (Wi-Fi 6/6E)
- Wireless Functions : 1024-QAM 4x Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO (4*4 MU-MIMO DL&UL) MIMO [4*4 (2.4G and 5G) MU-MIMO; 4*4 (2.4G and 5G) SU-MIMO]
- Max Single Band Wi-Fi Rate : 4804 Mbps
- Wireless Standards : IEEE 802.11ax/ac/n/g/b/a
- Security : Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Button(s) : Reset
- Power Supply : 802.3at PoE 12V / 2A DC (Power Adapter IS NOT included)
- Package Contents : EAP683 UR Ceiling/Wall Mounting Kits Installation Guide
- Wi-Fi Rating : AX6000
- Primary Function : Access Point
- Suitable for Outdoor : No
- Interface(s) : 1 x 2.5 Gigabit PoE+ Port
- Antenna(s) : Internal Omni: 2.4 GHz: 4x 4 dBi 5 GHz: 4x 5 dBi
- Warranty : Limited Lifetime
- Dimensions : 220 x 220 x 32.5 mm
- Management : Omada App Centralized Management Cloud Access Email Alerts LED ON/OFF Control Management MAC Access Control SNMP v1, v2c, v3 Local/Remote Syslog SSH HTTP/HTTPS L3 Management Multi-site Management Management VLAN Zero-Touch Provisioning
- . : HE160 (160 MHz Bandwidth) Seamless Roaming(802.11k/v/r) Omada Mesh Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
- Package Type : Retail
- Bands : Dual Band
- Wireless Range : Ultra-range wireless coverage
- Max Wired Transfer Rate : 2.5 Gbps
- #Hide#Access Point Mode : Yes (Access Point Mode)
- Frequency : 5 GHz: Up to 4804 Mbps 2.4 GHz: Up to 1148 Mbps
- Additional Features : See Overview
- Environment : Operating Temperature: 0–40 °C (32–104 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Power Consumption : 20.43W
- Package Weight : 1.3000 kg
