TP-LINK (EAP772) BE9300 Tri-Band Ceiling Mount Wi-Fi 7 Access Point, PoE, 2.5GB Port, Omada Mesh, MLO, Multi-RUs
$526.09
Sale price
$526.09
Regular price
$0.00
Skip to product information
Specifications:
- #Hide#Wireless Standard : 802.11be (Wi-Fi 7)
- Wireless Functions : MLO 4K-QAM Seamless Roaming(802.11k/v/r) MU-MIMO EHT320 Mesh BSS Coloring OFDMA Load Balance Band Steering Beamforming Airtime Fairness Multiple SSIDS:24(8 on each band) Wireless Schedule Reboot Schedule QoS(WMM) Rate Limit Static IP/Dynamic IP RADIUS Accounting MAC Authentication
- Max Single Band Wi-Fi Rate : 5760 Mbps
- Wireless Standards : IEEE 802.11 a/b/g/n/ac/ax/be
- Security : Captive Portal Authentication Access Control Maximum number of MAC Filter: 4,000 Wireless Isolation Between Clients VLAN Rogue AP Detection WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Button(s) : Reset
- Power Supply : 802.3at PoE or 12V/2.5A DC NOTE: Power Adapter is NOT included.
- Package Contents : EAP772 Installation Guide Ceiling/Wall Mounting Kit Note: Power Adapter is NOT included.
- Wi-Fi Rating : BE9300
- Primary Function : Access Point
- Suitable for Outdoor : No

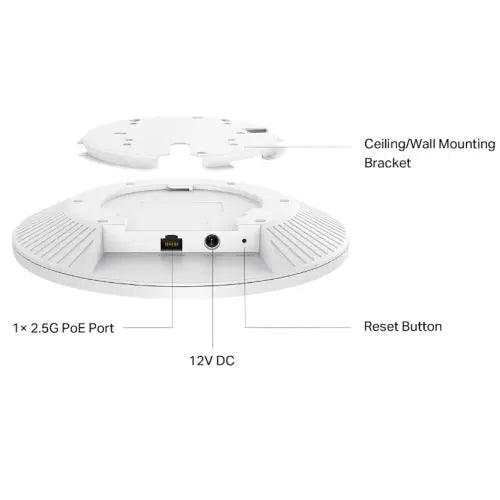

- Interface(s) : 1 x 2.5G Ethernet Port
- Antenna(s) : 2.4 GHz: 2x 4.0 dBi 5 GHz: 2x 5.0 dBi 6 GHz: 2x 5.0 dBi
- Warranty : Limited Lifetime

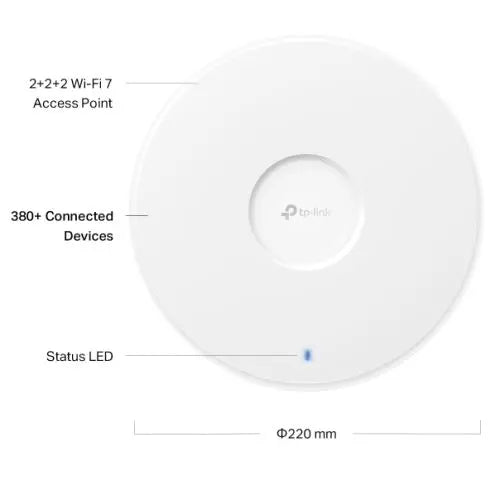

- Dimensions : 220 x 220 x 32.5 mm
- Management : Omada App Centralized Management Omada Hardware Controller (OC200 & OC300) Omada Software Controller Omada Cloud-Based Controller Cloud Access - Requires controller Email Alerts LED ON/OFF Control Management MAC Access Control SNMP: v1, v2c, v3 System Logging Local/Remote Syslog Web-based Management
- Package Type : Retail
- Bands : Tri Band
- Max Wired Transfer Rate : 2.5 Gbps
- #Hide#Access Point Mode : Yes (Access Point Mode)
- Frequency : 2.4GHz: Up to 574 Mbps 5GHz: Up to 2880 Mbps 6GHz: Up to 5760 Mbps
- Additional Features : See Overview
- Environment : Operating Temperature: 0–40 °C (32–104 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Power Consumption : 24.05 W (For PoE) 20.92 W (For DC)
- Package Weight : 1.3400 kg
TP-LINK (EAP772) BE9300 Tri-Band Ceiling Mount Wi-Fi 7 Access Point, PoE, 2.5GB Port, Omada Mesh, MLO, Multi-RUs
$526.09
Sale price
$526.09
Regular price
$0.00
TP-LINK (EAP772) BE9300 Tri-Band Ceiling Mount Wi-Fi 7 Access Point, PoE, 2.5GB Port, Omada Mesh, MLO, Multi-RUs
BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
- BE9300 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 2880 Mbps on 5 GHz + 574 Mbps on 2.4 GHz).
- A clear 6 GHz band brings cleaner and wider band resources.
- 1x 2.5G Port unlocks the full potential of Wi-Fi 7.
- 320 MHz bandwidth enables many more simultaneous transmissions.
- Multi-Link Operation and Multi-RUs ensure the high performance of your network.
- Advanced Functions: Centralized management, mesh, and AI roaming

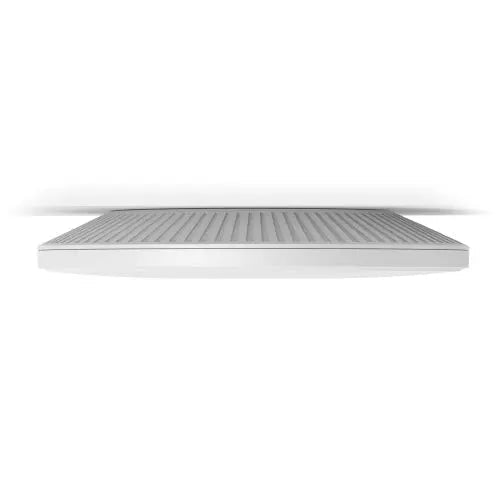

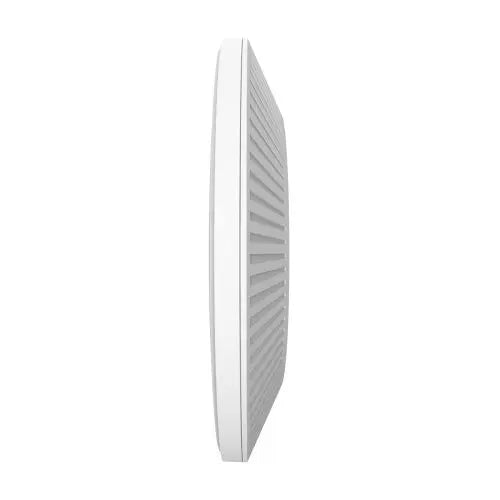

Ultra-Thin Design for Flexible Deployment
The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.
Specifications:
- #Hide#Wireless Standard : 802.11be (Wi-Fi 7)
- Wireless Functions : MLO 4K-QAM Seamless Roaming(802.11k/v/r) MU-MIMO EHT320 Mesh BSS Coloring OFDMA Load Balance Band Steering Beamforming Airtime Fairness Multiple SSIDS:24(8 on each band) Wireless Schedule Reboot Schedule QoS(WMM) Rate Limit Static IP/Dynamic IP RADIUS Accounting MAC Authentication
- Max Single Band Wi-Fi Rate : 5760 Mbps
- Wireless Standards : IEEE 802.11 a/b/g/n/ac/ax/be
- Security : Captive Portal Authentication Access Control Maximum number of MAC Filter: 4,000 Wireless Isolation Between Clients VLAN Rogue AP Detection WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Button(s) : Reset
- Power Supply : 802.3at PoE or 12V/2.5A DC NOTE: Power Adapter is NOT included.
- Package Contents : EAP772 Installation Guide Ceiling/Wall Mounting Kit Note: Power Adapter is NOT included.
- Wi-Fi Rating : BE9300
- Primary Function : Access Point
- Suitable for Outdoor : No
- Interface(s) : 1 x 2.5G Ethernet Port
- Antenna(s) : 2.4 GHz: 2x 4.0 dBi 5 GHz: 2x 5.0 dBi 6 GHz: 2x 5.0 dBi
- Warranty : Limited Lifetime
- Dimensions : 220 x 220 x 32.5 mm
- Management : Omada App Centralized Management Omada Hardware Controller (OC200 & OC300) Omada Software Controller Omada Cloud-Based Controller Cloud Access - Requires controller Email Alerts LED ON/OFF Control Management MAC Access Control SNMP: v1, v2c, v3 System Logging Local/Remote Syslog Web-based Management
- Package Type : Retail
- Bands : Tri Band
- Max Wired Transfer Rate : 2.5 Gbps
- #Hide#Access Point Mode : Yes (Access Point Mode)
- Frequency : 2.4GHz: Up to 574 Mbps 5GHz: Up to 2880 Mbps 6GHz: Up to 5760 Mbps
- Additional Features : See Overview
- Environment : Operating Temperature: 0–40 °C (32–104 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Power Consumption : 24.05 W (For PoE) 20.92 W (For DC)
- Package Weight : 1.3400 kg
