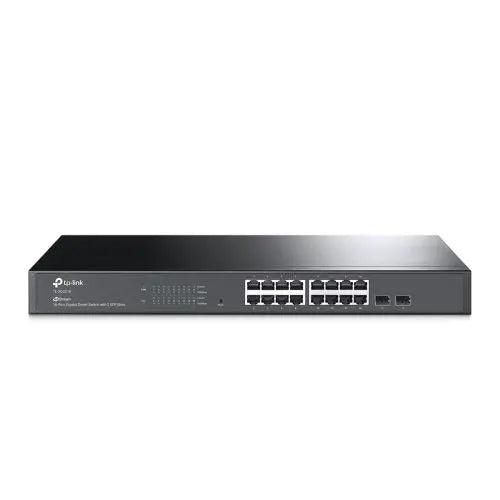

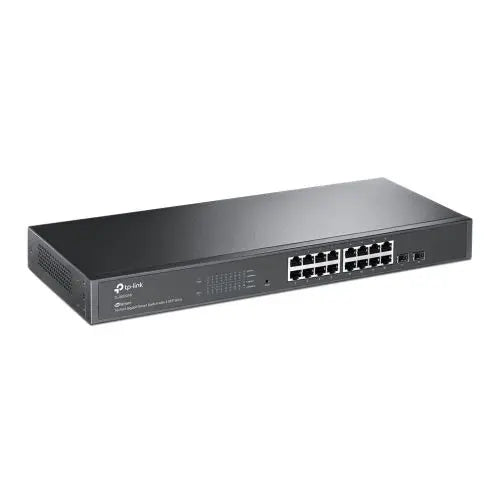

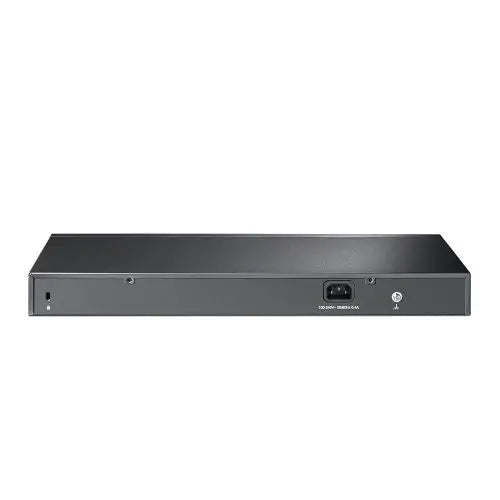

TP-LINK (SG2218) JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots, L2/L3/L4 QoS, Fanless, Rackmountable
$446.70
Sale price
$446.70
Regular price
$0.00
Skip to product information
Specifications:
- VLAN : VLAN Group 802.1q Tagged VLAN MAC VLAN: 12 Entries Protocol VLAN: Template 16, VLAN 16 GVRP VLAN VPN (QinQ) Voice VLAN
- #Hide#POE : No
- Security : IP-MAC-Port Binding IPv6-MAC-Port Binding DoS Defend Static/Dynamic Port Security Broadcast/Multicast/Unicast Storm Control IP/Port/MAC based access control 802.1X AAA (including TACACS+) Port Isolation Secure web management - HTTPS with SSLv3/TLS 1.2 Secure CLI management with SSHv1/SSHv2
- Power Supply : 100-240 V AC~50/60 Hz Max Power Consumption: 12.3 W (220 V/50 Hz)
- Package Contents : TL-SG2218 Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet
- Number of Ports : 16
- Layer Features : L2 and L2+: Link Aggregation Spanning Tree Protocol Loopback Detection Flow Control Mirroring L3: 16 IPv4/IPv6 Interfaces Static Routing Static ARP 316 ARP Entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay DHCP L2 Relay
- Interface(s) : 16 x 10/100/1000 Mbps RJ45 Ports 2 x Gigabit SFP Slots
- Packet Forwarding Rate : 26.8 Mpps
- Access Control : Time-based ACL MAC ACL IP ACL Combined ACL Packet Content ACL IPv6 ACL Policy ACL apply to Port/VLAN
- Jumbo Frame : 9 KB
- Switching Capacity : 36 Gbps
- Warranty : Limited Lifetime
- Dimensions : 440 x 180 x 44 mm
- Max RJ45 Transfer Rate : 10/100/1000 Mbps
- PoE Ports (RJ45) : -
- Management : Web-based GUI CLI through console port, telnet SNMPv1/v2c/v3 SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log
- #Hide#Max SFP Transfer Rate : GB SFP
- Mac Address Table : 8K
- Quality of Service : L2/L3/L4 QoS and IGMP snooping
- Package Type : Retail
- Rackmountable : Yes
- Additional Features : Support Omada Hardware/Software/Cloud-Based Controller Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule ZTP (Zero-Touch Provisioning)
- Environment : Operating Temperature: 0–40 C (32–104 F); Storage Temperature: -40–70 C (-40–158 F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Package Weight : 2.5320 kg
- Managed : Smart
TP-LINK (SG2218) JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots, L2/L3/L4 QoS, Fanless, Rackmountable
$446.70
Sale price
$446.70
Regular price
$0.00
TP-LINK (SG2218) JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots, L2/L3/L4 QoS, Fanless, Rackmountable
JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots
- Full Gigabit Ports: 16x gigabit RJ45 ports and 2x gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features
sFlow, QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Specifications:
- VLAN : VLAN Group 802.1q Tagged VLAN MAC VLAN: 12 Entries Protocol VLAN: Template 16, VLAN 16 GVRP VLAN VPN (QinQ) Voice VLAN
- #Hide#POE : No
- Security : IP-MAC-Port Binding IPv6-MAC-Port Binding DoS Defend Static/Dynamic Port Security Broadcast/Multicast/Unicast Storm Control IP/Port/MAC based access control 802.1X AAA (including TACACS+) Port Isolation Secure web management - HTTPS with SSLv3/TLS 1.2 Secure CLI management with SSHv1/SSHv2
- Power Supply : 100-240 V AC~50/60 Hz Max Power Consumption: 12.3 W (220 V/50 Hz)
- Package Contents : TL-SG2218 Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet
- Number of Ports : 16
- Layer Features : L2 and L2+: Link Aggregation Spanning Tree Protocol Loopback Detection Flow Control Mirroring L3: 16 IPv4/IPv6 Interfaces Static Routing Static ARP 316 ARP Entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay DHCP L2 Relay
- Interface(s) : 16 x 10/100/1000 Mbps RJ45 Ports 2 x Gigabit SFP Slots
- Packet Forwarding Rate : 26.8 Mpps
- Access Control : Time-based ACL MAC ACL IP ACL Combined ACL Packet Content ACL IPv6 ACL Policy ACL apply to Port/VLAN
- Jumbo Frame : 9 KB
- Switching Capacity : 36 Gbps
- Warranty : Limited Lifetime
- Dimensions : 440 x 180 x 44 mm
- Max RJ45 Transfer Rate : 10/100/1000 Mbps
- PoE Ports (RJ45) : -
- Management : Web-based GUI CLI through console port, telnet SNMPv1/v2c/v3 SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log
- #Hide#Max SFP Transfer Rate : GB SFP
- Mac Address Table : 8K
- Quality of Service : L2/L3/L4 QoS and IGMP snooping
- Package Type : Retail
- Rackmountable : Yes
- Additional Features : Support Omada Hardware/Software/Cloud-Based Controller Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule ZTP (Zero-Touch Provisioning)
- Environment : Operating Temperature: 0–40 C (32–104 F); Storage Temperature: -40–70 C (-40–158 F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Package Weight : 2.5320 kg
- Managed : Smart
