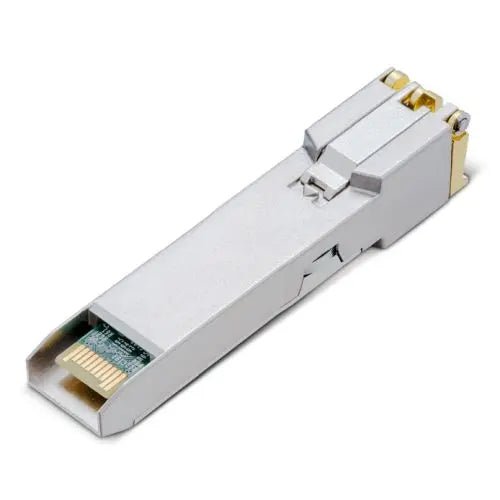

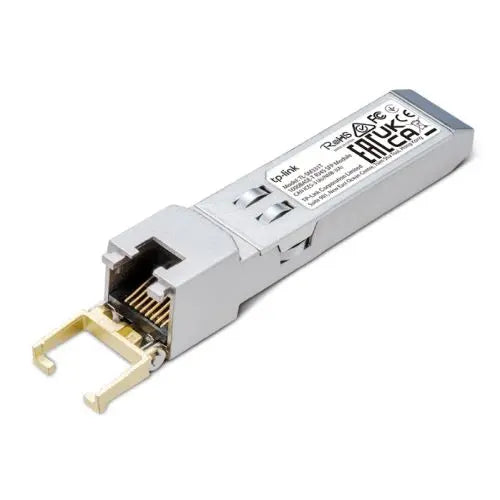

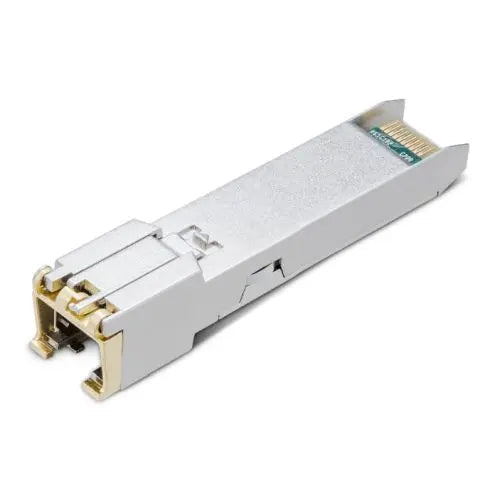

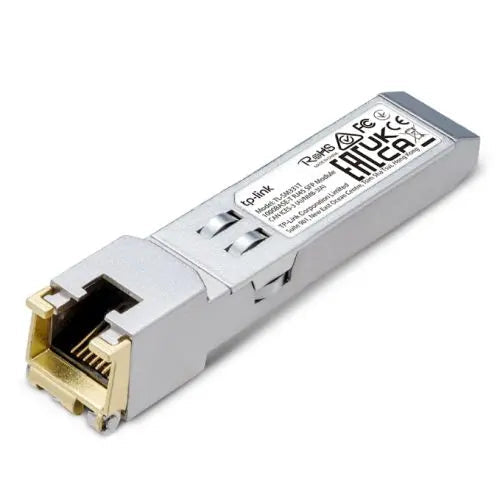

TP-LINK (SM331T) 1000BASE-T RJ45 SFP Module, Support TX Disable, 100m Reach Over Cat5e or Above, Hot-Pluggable
$59.55
Sale price
$59.55
Regular price
$0.00
Skip to product information
Specifications:
- Package Type : Retail
- Port Type : 1 x 1000 Mbps RJ45 Port
- Package Contents : 1000BASE-T RJ45 SFP Module TL-SM331T Installation Guide
- Warranty : 2 Years
- Data Rate : 1.25 Gbps
- Device Type : SFP Module
- Environment : Operating Temperature: 0–70°C (32–158°F) Storage Temperature: -40–85°C (-40–185°F)
- Standards and Protocols : IEEE 802.3-2002
- Max. Cable Length : 100m (Cat 5e or above)
- Fiber Type : Compatible with various optic fiber equipment
- Package Weight : 0.0650 kg
- Power Supply : 3.3V
TP-LINK (SM331T) 1000BASE-T RJ45 SFP Module, Support TX Disable, 100m Reach Over Cat5e or Above, Hot-Pluggable
$59.55
Sale price
$59.55
Regular price
$0.00
TP-LINK (SM331T) 1000BASE-T RJ45 SFP Module, Support TX Disable, 100m Reach Over Cat5e or Above, Hot-Pluggable
1000BASE-T RJ45 SFP Module
- Support 1000BASE-T Operation in Host Systems
- Support TX Disable function
- For 100m* Reach Over UTP Cat 5e or above Cable
- Hot-Pluggable SFP Footprint Features
- Commercial Product Operating Temperature Range: 0-70°C
- Compliant with IEEE Std 802.3-2002
- Fully Metallic Enclosure for Low EMI
- Low Power Dissipation (0.5 W Typical, 0.8 W Max)
Gigabit Port for a High-Speed Connection
Transmit data seamlessly up to 100 meters* between your SFP interface and the copper gigabit port.
Plug and Play
A plug-and-play** design makes for easy deployment, no technician needed.
Durable Metal Casing
High-quality metal casing ensures strength and reliability for a long time, maintaining a stable connection in a wide range of environments.
High Compatibility
Connect your devices with fewer concerns. Our product is perfectly compatible with various optic fiber equipment from different vendors.
*Laboratory data using the Cat5e cable. Actual distance may vary.
**When TL-SM331T is inserted into a 2.5/10/25G fiber port, extra configuration for port data rate may be required. The 100Mbps port is incompatible.
Specifications:
- Package Type : Retail
- Port Type : 1 x 1000 Mbps RJ45 Port
- Package Contents : 1000BASE-T RJ45 SFP Module TL-SM331T Installation Guide
- Warranty : 2 Years
- Data Rate : 1.25 Gbps
- Device Type : SFP Module
- Environment : Operating Temperature: 0–70°C (32–158°F) Storage Temperature: -40–85°C (-40–185°F)
- Standards and Protocols : IEEE 802.3-2002
- Max. Cable Length : 100m (Cat 5e or above)
- Fiber Type : Compatible with various optic fiber equipment
- Package Weight : 0.0650 kg
- Power Supply : 3.3V
