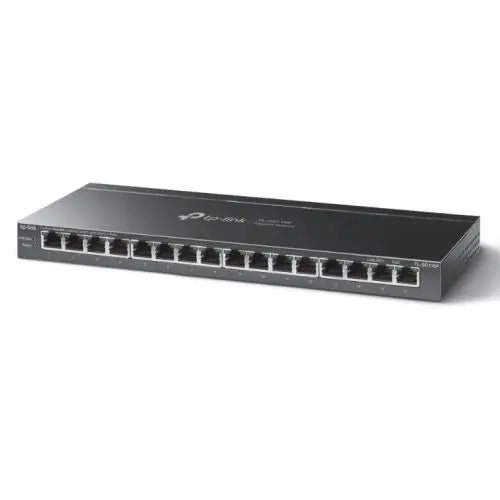

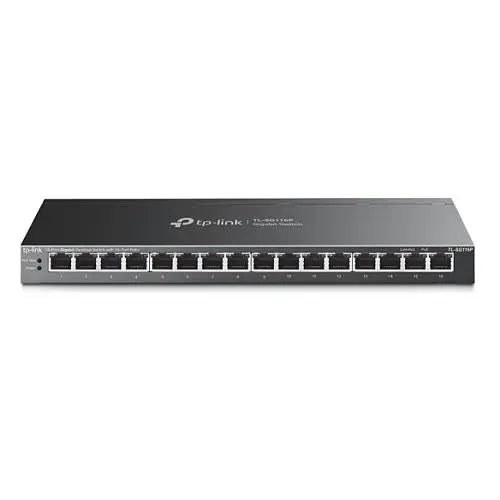

TP-LINK (TL-SG116P) 16-Port Gigabit Desktop Switch with 16-Port PoE+
$531.09
Sale price
$531.09
Regular price
$0.00
Skip to product information
Specifications:
- Switching Capacity : 32 Gbps
- Transfer Method : Store-And-Forward
- Warranty : Limited Lifetime
- Dimensions : (WxDxH) 286 x 111.7 x 25.4 mm
- Max RJ45 Transfer Rate : 10/100/1000 Mbps
- PoE Ports (RJ45) : Standard: 802.3 af/at compliant PoE Ports: Ports 1–16 Power Supply: 120 W
- #Hide#POE : Yes
- Mac Address Table : 8K, Auto-learning, Auto-aging
- Quality of Service : 802.1p/DSCP QoS
- Power Supply : External Power Adapter (Output: 53.5 VDC / 2.43 A)
- Package Type : Retail
- Package Contents : TL-SG116P Power Adapter Installation Guide
- Rackmountable : No
- Number of Ports : 16
- Interface(s) : 16 x 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX
- Packet Forwarding Rate : 23.8 Mpps
- Additional Features : Compatible With IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1–4, Up to 250m PoE power & data transmission) Priority Mode Button (Ports 1–4) Isolation Mode Button (Ports 1–7 / 8-14) PoE Auto Recovery (Ports 1-16) Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control IGMP Snooping
- Environment : Operating Temperature: 0–40°C (32–104°F) Storage Temperature: -40–70°C (-40–158°F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Package Weight : 2.2500 kg
- Managed : No
TP-LINK (TL-SG116P) 16-Port Gigabit Desktop Switch with 16-Port PoE+
$531.09
Sale price
$531.09
Regular price
$0.00
TP-LINK (TL-SG116P) 16-Port Gigabit Desktop Switch with 16-Port PoE+
16-Port Gigabit Desktop Switch with 16-Port PoE+
- 16x 10/100/1000 Mbps RJ45 ports
- With 16 PoE+ ports, transfers data and power on one single cable
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 120 W for all PoE ports*
- Up to 250 m data and power transmission range under Extend Mode**
- Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
- Plug and play with no configuration required
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Specifications:
- Switching Capacity : 32 Gbps
- Transfer Method : Store-And-Forward
- Warranty : Limited Lifetime
- Dimensions : (WxDxH) 286 x 111.7 x 25.4 mm
- Max RJ45 Transfer Rate : 10/100/1000 Mbps
- PoE Ports (RJ45) : Standard: 802.3 af/at compliant PoE Ports: Ports 1–16 Power Supply: 120 W
- #Hide#POE : Yes
- Mac Address Table : 8K, Auto-learning, Auto-aging
- Quality of Service : 802.1p/DSCP QoS
- Power Supply : External Power Adapter (Output: 53.5 VDC / 2.43 A)
- Package Type : Retail
- Package Contents : TL-SG116P Power Adapter Installation Guide
- Rackmountable : No
- Number of Ports : 16
- Interface(s) : 16 x 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX
- Packet Forwarding Rate : 23.8 Mpps
- Additional Features : Compatible With IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1–4, Up to 250m PoE power & data transmission) Priority Mode Button (Ports 1–4) Isolation Mode Button (Ports 1–7 / 8-14) PoE Auto Recovery (Ports 1-16) Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control IGMP Snooping
- Environment : Operating Temperature: 0–40°C (32–104°F) Storage Temperature: -40–70°C (-40–158°F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Package Weight : 2.2500 kg
- Managed : No
